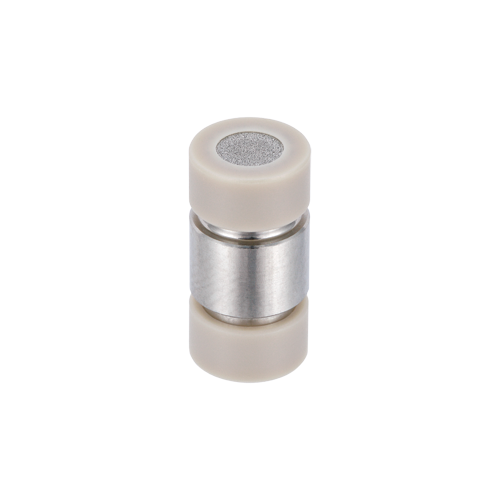

Guard Column Cartridges, RP C4 Wide Pore, 5um, 300A. 2.1mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent RP C4™ Wide Pore Guard Column Cartridges are designed to protect valuable analytical HPLC columns from particulates, strongly retained compounds, and sample contaminants that can reduce column performance and shorten column life. Packed with the same RP C4™ Wide Pore stationary phase used in Cogent analytical columns, these guard cartridges help maintain method consistency while extending analytical column service life. The stationary phase consists of a four-carbon butyl ligand bonded to ultra-high purity silica and is fully double end capped for reproducible reversed-phase performance.
68504-PG1-3 is a guard column cartridge set packed with 5 µm RP C4™ Wide Pore particles featuring a 300 Å pore size in a 2.1 mm ID x 10 mm format. Designed specifically to protect 2.1 mm ID RP C4™ Wide Pore analytical columns, these cartridges capture particulates and contaminants before they reach the analytical column bed. The 300 Å pore structure is particularly suitable for protein, peptide, enzyme, and other large biomolecule applications. The cartridges are constructed using stainless steel tubes with stainless steel frits pressed into PEEK frit caps for durability and reliable operation. This package contains five guard column cartridges.
Routine replacement of guard cartridges helps maintain column efficiency, preserve chromatographic performance, and reduce the cost of analytical column replacement. These cartridges are particularly useful for LC-MS methods and other narrow-bore HPLC applications involving large biomolecules where protecting the analytical column is critical to maintaining method performance.
Key Benefits
RP C4™ Wide Pore stationary phase
USP L26 equivalent chemistry
Butyl (C4) bonded phase
Fully double end capped
Ultra-high purity silica support
300 Å wide pore design
Protects analytical columns from contamination
Extends analytical column lifetime
Maintains chromatographic performance
Supplied as a 5-pack
Typical Applications
Protein analysis
Peptide analysis
Enzyme analysis
LC-MS methods
Reversed-phase HPLC
Analytical HPLC
Method development
Biopharmaceutical analysis
Research and development
Analytical column protection
Specifications
Product Type: Guard Column Cartridge
Stationary Phase: RP C4™ Wide Pore
USP Classification: L26
Chromatography Mode: Reversed Phase
Bonded Phase: Butyl (C4)
Endcapping: Fully Double End Capped
Particle Size: 5 µm
Pore Size: 300 Å
Cartridge Dimensions: 2.1 mm ID x 10 mm
Hardware: Stainless Steel Tube with Stainless Steel Frits and PEEK Frit Caps
Quantity: 5/PK
Brand: Cogent
Important Notes
Designed to protect 2.1 mm ID RP C4™ Wide Pore analytical columns from particulates and contaminants
300 Å wide pores are ideal for proteins, peptides, enzymes, and other large biomolecules
Maintains column efficiency and chromatographic performance
Helps extend analytical column service life
Ideal for narrow-bore HPLC and LC-MS methods
A Cogent Guard Column Holder (83200-GH) is required for use with these guard column cartridges
Supplied as a convenient 5-pack
